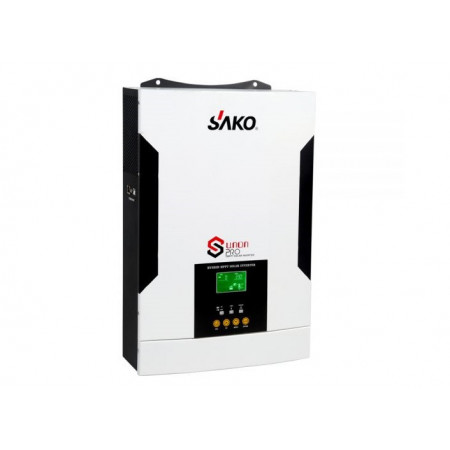

SUNONPro Invertor 3.5 kW / 5.5 kW / 8 kW cu controller MPPT pentru panouri fotovoltaice (solare), 3500 5500 8000W
Descriere
SUNONPro 3.5Kw/5.5Kw Invertor 3500W - 5500W pentru panouri fotovoltaice (solare)
- Pure Sine Wave MPPT Solar Inverter
- With 100A MPPT Solar Charge Controller built-in
- With Touch Button on the LCD display
- Output Power Factor is 1.0
- It can work with or without a battery
- With WIFI function optional
- With a high PV input voltage range(120-500VDC)
- Smart battery charger and management for optimized battery performance
- Cold Start function 10. Auto restart while AC is recovering
Model |
SUNON PRO 3.5K |
SUNON PRO 5.5K |
|
The rated power
|
3500VA/3500W
|
5500VA/5500W
|
|
INPUT
|
||
|
Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170-280VAC (UPS),90-280VAC (Appliances)
|
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
|
OUTPUT
|
||
|
AC Voltage Regulation (Batt. Model)
|
230VAC ± 5%
|
|
|
Surge Power
|
7000VA
|
11000VA
|
|
Power factor
|
1.0
|
1.0
|
|
Efficiency(Peak)
|
> 90%
|
|
|
Transfer Time
|
10ms (UPS), 20ms (Appliances)
|
|
|
Waveform
|
Pure sine wave
|
|
|
No-load current
|
1.0A
|
1.1A
|
|
BATTERY
|
||
|
Battery voltage
|
24VDC
|
48VDC
|
|
Low battery alarming voltage
|
22.0VDC
|
44.0VDC
|
|
Low battery cut off protection voltage
|
21VDC
|
42VDC
|
|
Low battery recovery voltage
|
23.0VDC
|
46.0VDC
|
|
Floating Charge Voltage
|
27VDC
|
54VDC
|
|
Overcharge Protection
|
32VDC
|
64VDC
|
|
MPPT SOLAR CHARGER & AC CHARGER
|
||
|
Maximum PV Array Power
|
5000W
|
6000W
|
|
MPPT Range Operation Vol
|
120-450VDC
|
120-450VDC
|
|
Maximum PV Array Open Circuit Vol.
|
500VDC
|
500VDC
|
|
Number of MPPT trackers / Max output current
|
100A
|
100A
|
|
Maximum AC Charge Current
|
60A
|
60A
|
|
Maxmum Charge Current
|
100A
|
100A
|
|
Maximum Efficiency
|
98%
|
|
|
BEST PANEL CONFIGURATION
|
||
|
Maximum PV Array Power
|
5000W
|
6000W
|
|
Best Panel configuration
|
300Wp*9pcs*36V(2700Wp)*2Parallel
|
330Wp*9pcs*36V(2970Wp)*2Parallel
|
|
PHYSICAL
|
||
|
Products Dimension, D*W*H(mm)
|
481mm*313mm*117mm
|
481mm*313mm*117mm
|
|
Packing size, D*W*H(mm)
|
543mm*394mm*204mm
|
543mm*394mm*204mm
|
|
Net Weight (kgs)
|
9.8Kg
|
10.5Kg
|
|
G.W. kg
|
11.2Kg
|
11.8Kg
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
|
Operation Temperature
|
0℃-50℃
|
|
